How to produce spherical calcium carbonate particles via grinding
Reading time:
minutes
To produce spherical calcium carbonate (CaCO₃) particles through grinding, you need to control the grinding mechanism, equipment selection, process parameters, and additives to transform irregular calcite crystals into rounded/spherical shapes. The approach is most effective for ground calcium carbonate (GCC) using wet stirred mills with appropriate media and operating conditions. Key Principles for Spherical Shape Formation Spherical morphology is achieved by attrition-dominated grinding rather than impact-dominated breakage: Attrition: Shearing and rolling forces round particle edges, creating smoother, more spherical shapes Impact: Tends to produce angular, fractured particles with higher aspect ratios The goal is to balance particle size reduction with shape modification, avoiding excessive energy input that causes crystal phase transformation Recommended Production Process 1. Raw Material Preparation Start with…
To produce spherical calcium carbonate (CaCO₃) particles through grinding, you need to control the grinding mechanism, equipment selection, process parameters, and additives to transform irregular calcite crystals into rounded/spherical shapes. The approach is most effective for ground calcium carbonate (GCC) using wet stirred mills with appropriate media and operating conditions.
Key Principles for Spherical Shape Formation
Spherical morphology is achieved by attrition-dominated grinding rather than impact-dominated breakage:
Attrition: Shearing and rolling forces round particle edges, creating smoother, more spherical shapes
Impact: Tends to produce angular, fractured particles with higher aspect ratios
The goal is to balance particle size reduction with shape modification, avoiding excessive energy input that causes crystal phase transformation

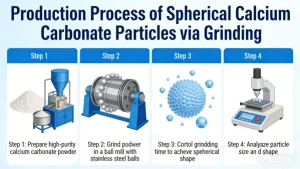

Recommended Production Process
1. Raw Material Preparation
Start with high-purity calcite/limestone (95%+ CaCO₃), crushed to 100–200 μm feed size
Remove impurities (iron oxides, clays) via magnetic separation to maintain whiteness and purity
Prepare aqueous slurry with 30–50% solids content for wet grinding (optimizes particle-particle interaction)
2. Equipment Selection for Spherical Grinding
Equipment Type
Best For
Spherical Shape Performance
Key Advantages
Wet Stirred Media Mill
Submicron to 5 μm
★★★★★
Attrition-dominated grinding; precise control over particle shape
Switch to stirred mill; reduce tip speed; increase media size
Agglomeration
Insufficient dispersant; high solids content
Increase dispersant dosage; adjust pH to 8–10; reduce solids to 35–40%
Phase Transformation
Overgrinding; high energy input
Limit grinding time to <120 min; reduce stirrer speed; maintain temperature <90°C
Low Sphericity
Inadequate attrition; short grinding time
Increase grinding time to 90 min; use smaller media (1 mm); optimize ball-to-powder ratio
Industrial Best Practices
Pilot Testing: Optimize parameters (media size, speed, time) at lab scale before scaling up
Process Monitoring: Use dynamic image analysis (DIA) to track particle shape (aspect ratio) in real time
Energy Efficiency: Recycle process water; use variable frequency drives for stirrer speed control
Quality Control: Regularly test for particle size distribution (D₁₀, D₅₀, D₉₀), sphericity, and purity
Comparison: Grinding vs Precipitation Methods for Spherical CaCO₃
Method
Sphericity Control
Cost
Production Scale
Crystal Phase
Grinding (GCC)
Moderate (attrition-based)
Lower
Large-scale
Calcite (stable)
Precipitation (PCC)
High (crystal growth control)
Higher
Medium-scale
Vaterite/aragonite (metastable)
Grinding is preferred for large-volume, cost-sensitive applications requiring stable calcite phase, while precipitation offers ultra-spherical, uniform particles for high-end uses.
Final Recommendations for Spherical GCC Production
Use a wet stirred media mill with zirconia microbeads (1–1.5 mm)
Operate at 70–80°C, 800–1,500 rpm, for 60–90 minutes with 40% solids
Add 0.1–0.5% polyacrylate dispersant and 0.05% citric acid as shape modifier
Classify to target size (e.g., D₅₀ = 2 μm) for optimal spherical properties
