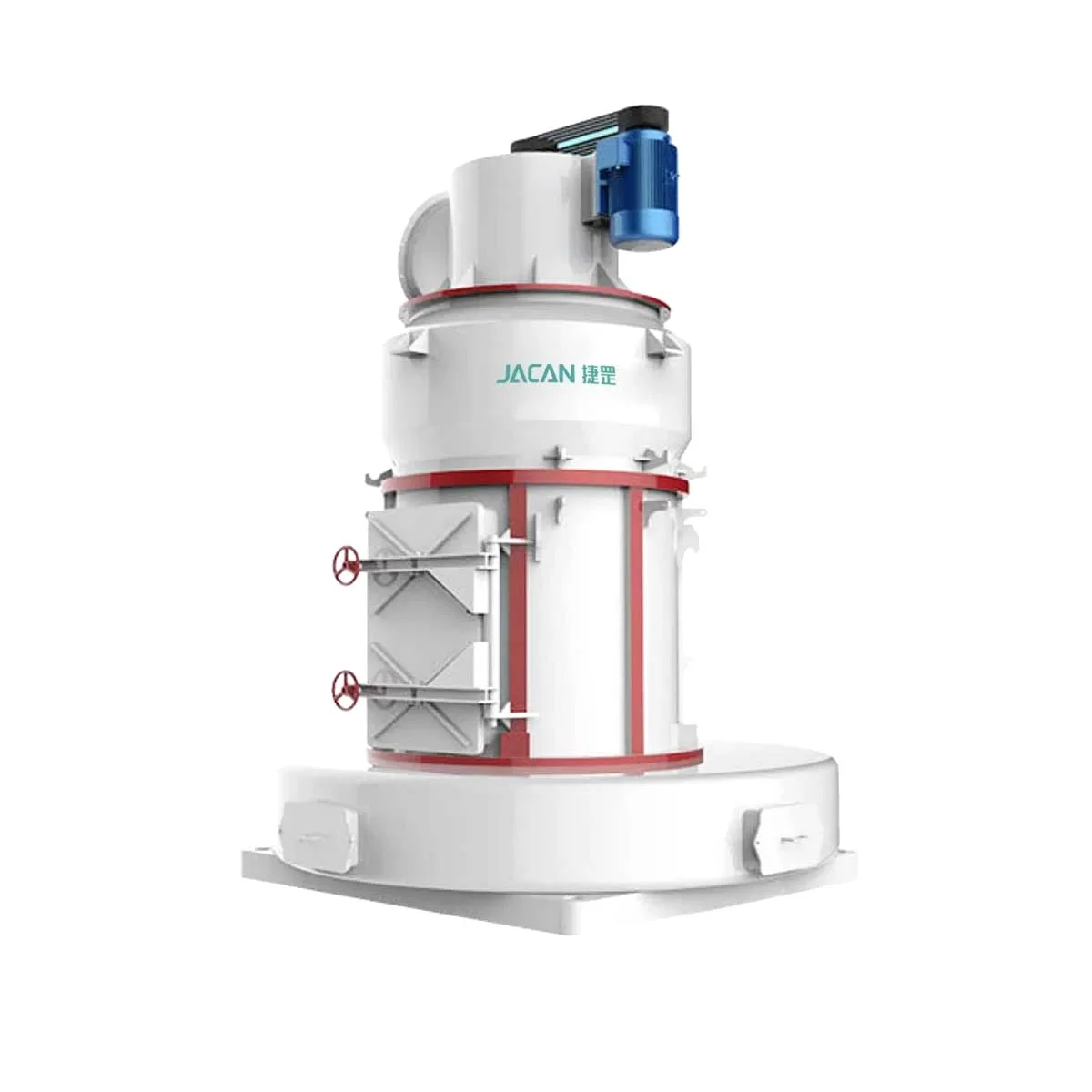

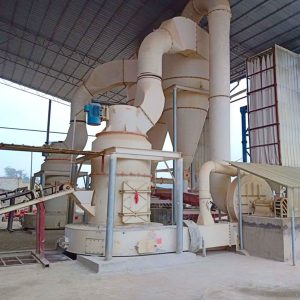

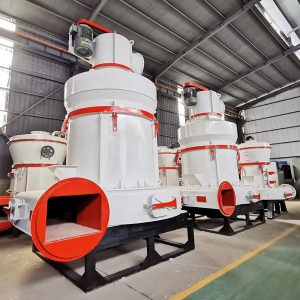

Raymond Mill Production Process

In the calcium carbonate industry, the Raymond mill is one of the earliest and most widely used grinding equipment in the world. Its conventionally processed calcium carbonate powder has relatively low fineness, which is mainly suitable for the large-scale production of ordinary calcium carbonate powder with a mesh size of over 400. With secondary classification, small batches of products with a mesh size of 500–1250 can be obtained, thus having the capability of large-scale production of coarse powder and small-batch production of fine powder.

How it works

The motor drives the reducer to rotate the grinding rollers inside the main machine. After materials fall into the grinding chamber, they are shoveled up by the rotating shovels and fed into the space between the grinding rollers and rings. Under the action of centrifugal force, the grinding rollers press tightly against the grinding rings to crush and grind the materials. The ground fine powder rises to the classifier along with the air flow generated by the blower. The classification turbine screens the powder according to the particle size requirements: qualified fine powder passes through the gaps of the turbine blades and enters the dual cyclone collectors for separation and discharge; unqualified coarse powder falls back to the grinding chamber for re-grinding.

Performance and features

Strong Conveying Capacity, Efficient Material Circulation

Equipped with a high-pressure centrifugal blower, the equipment features significantly increased air volume and pressure, which greatly enhances the pneumatic conveying capacity. It can quickly transport crushed materials to the classification and separation links, avoiding material accumulation, ensuring the continuous and stable operation of the entire production line, and improving overall processing efficiency.
Excellent Classification Precision, Flexible Particle Size Adjustment

The classifier is equipped with a built-in squirrel-cage conical turbine classifier, allowing the finished product particle size to be arbitrarily adjusted within the range of 80-500 meshes. During the classification process, it can strictly screen particles of different sizes, ensuring uniform particle size distribution of the finished product and accurately meeting the particle size requirements of various precision processing scenarios.
Advanced Main Machine Structure, Convenient Operation & Maintenance

The main machine is equipped with a dedicated buffer device, and the hood cylinder adopts an optimized structural design, which effectively reduces vibration and noise during operation and ensures stable equipment operation. Meanwhile, the main machine and analyzer are equipped with quick-change compression devices, simplifying the disassembly and assembly process, making daily maintenance work such as inspection and component replacement more efficient, and reducing downtime.
Arc-Shaped Resistance-Free Air Duct, Improved Powder Selection Efficiency

The air duct adopts an arc-shaped resistance-free design, which scientifically optimizes the air flow path, minimizes resistance during air conveying, and reduces air volume loss. This ensures smooth and stable material flow in the air duct, providing better conditions for the analyzer’s powder selection, thereby significantly improving the powder selection rate and classification accuracy of the analyzer.
New-Type Grinding Roller Device, Maintenance-Free & Cost-Effective

The grinding roller device adopts a new maintenance-free structural design with reliable sealing performance. Its bearings are lubricated with engine oil, featuring low oil consumption, long bearing service life, and greatly reducing the maintenance frequency and cost during the long-term use of the equipment.
Large Shoveling Capacity, Durable & Efficient Grinding

Equipped with extra-large shovels, the equipment can maximize the amount of materials fed between the grinding rollers and rings for grinding, fully improving material grinding utilization and single processing capacity. The shovels are made of high-strength alloy steel, which is hard and wear-resistant, ensuring a long service life and reducing the replacement frequency of wearing parts and production costs.

Technical Parameters

Parameters / Model	1280	1300	1620	1850	2150	2500
Maximum feed size (mm)	20mm	20mm	30mm	35mm	35mm	35mm
Particle size (mesh)	80-400	80-400	80-325	80-325	80-325	80-325
Output (t/h)	2-10	2-14	2.5-18	6-30	12-40	15-50
Grinding roller size (mm）	Φ1280	Φ1300	Φ1620	Φ1850	Φ2150	Φ2500
Total power (kW)	145	202	322	442	575	675

Related Processes & equipment

Ball Mill + Air Classifier Production Process

The automatic ball milling and classification production line dedicated to calcium carbonate is an advanced integrated crushing and classification equipment developed specifically for the characteristics of calcium carbonate ore powder. Adopting a closed-circuit circulation system design, this production line boasts core advantages such as low energy consumption, high output, stable and efficient operation, mature and reliable technology, and precise control over the particle size of finished products. Its complete technological process includes key links such as two-stage crushing, fine grinding, precise classification, finished product packaging, silo storage, material conveying and vertical lifting. Multiple classifiers can be connected in parallel or in series at the rear end of the ball mill to realize the simultaneous production of calcium carbonate products with various particle size specifications.

Learn more about Ball Mill + Air Classifier Production Process

Vertical Mill Production Process

The vertical mill is a special layer extrusion grinding equipment for calcium carbonate powder processing. Its structural design is highly compatible with the physical properties of calcium carbonate, and it can achieve efficient grinding through the extrusion force between the grinding rollers and the grinding disc. In the conventional processing mode, relying on the built-in classification system of the equipment, the fineness of the finished product can stably reach 1250 mesh, which can meet the filler needs of industries such as coatings and plastics. When combined with the secondary and tertiary classification processes, the maximum fineness of the finished product can reach 3000 mesh, which can accurately meet the application requirements of high-end fields such as high-grade papermaking and advanced composite materials.

Learn more about Vertical Mill Production Process

Ring Roller Mill Production Process

The ultra-fine grinding process of calcium carbonate by ring roller mill adopts an exclusive "multi-roller small-diameter" design. With precisely controlled fit clearance between the ring rollers and grinding rings, it can process calcium carbonate powder to an ultra-fine precision of up to 2500 mesh (about 5 microns). This process features lower energy consumption than traditional equipment and a low proportion of over-ground powder in the finished product, which ensures uniform particle size distribution and lower oil absorption value of calcium carbonate powder. It is suitable for processing calcium carbonate materials with a Mohs hardness below grade 5 and moderate fineness requirements.

Learn more about Ring Roller Mill Production Process
